Garage Floor Prep and Crack Repair in Antioch
Epoxy Floors Craft Antioch covers garage floor prep in Antioch — diamond grinding, crack and spall repair and moisture testing — the unglamorous work that decides whether a coating bonds, and how decades-old slabs on East Contra Costa clay behave.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.

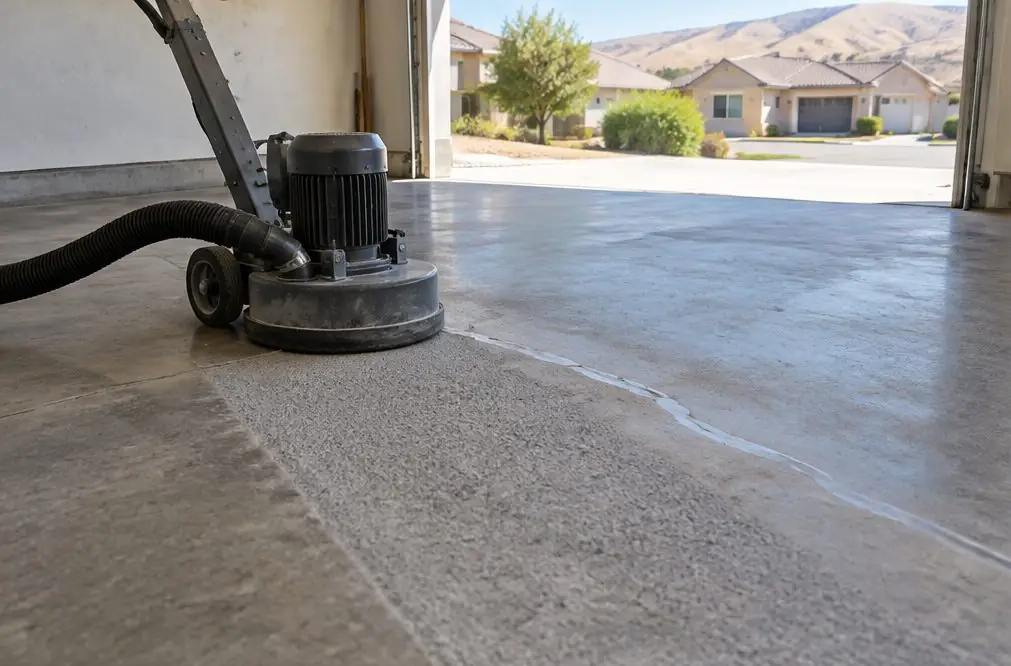

Illustration
Grinding, etching and why the profile matters
A coating holds on texture. Diamond grinding scratches the concrete to a roughness that coating professionals describe by a concrete surface profile (CSP) number; acid etching dissolves the surface lightly and leaves a milder, less even profile.
| Diamond grinding | Acid etching | |
|---|---|---|
| What it does | Removes the weak top layer and opens pores | Dissolves a thin film of cement paste |
| Profile | Deeper, even | Light, uneven |
| Dust | Captured by a shroud and vacuum | Wet slurry to rinse and neutralize |
| Old paint or coating | Removes it | Cannot |
| Practical note | The floor is dry when coating starts | Must be fully dry afterwards |
Diamond grinding opens the surface so the coating can bond; acid etching is a weaker substitute.
Crack types and what each one needs
| Crack | What it looks like | Usual repair | What to expect |
|---|---|---|---|
| Hairline shrinkage | Fine, short, often star-shaped | Routed or filled, ground flush | Usually stays closed |
| Control joint | Straight line where the slab was cut | Filled with a flexible joint filler | Moves with the seasons; fill is flexible, not rigid |
| Settlement | One side lower than the other | Leveled with repair mortar | Ask whether the cause is still active |
| Moving or stepped | Widening or offset over months | Needs a look from a concrete or foundation professional | A coating can show it again |
Cracks are filled and ground flush; a moving crack can show again. Repair of minor cracks, pits and spalls typically adds $1–$2 per square foot, or about $50–$200 per repair area.
Clay soils, seasons and a slab
Contra Costa County's own building findings describe local soils as clay loam and alluvial fans that are moderately to severely prone to swelling and shrinking. Clay takes up water and expands, then contracts as it dries, which is one reason hairline cracks appear in slab-on-grade garages that have been through several wet and dry seasons. Not every crack means soil movement: shrinkage cracks from curing are the commonest, and marking a crack's width with a pencil and measuring monthly shows whether it is still moving.
The three ways to test for moisture
A slab with moisture vapor coming up through it can push a coating off. Three tests are in common use:
- Plastic sheet test. A taped square of plastic left for about a day; condensation underneath suggests moisture. Cheap, qualitative.
- Calcium chloride test, ASTM F1869. Measures moisture vapor emission over 60 to 72 hours as pounds per 1,000 sq ft per 24 hours.
- In-slab relative humidity probes, ASTM F2170. Probes set into drilled holes read the humidity inside the slab.
Where readings are high, a moisture-mitigating primer is used or the job is reconsidered; the vapor-barrier primer is a priced option in the calculator, about $400–$1,000 for a typical garage.
What prep costs in Antioch
Grinding is part of every coating system price. What changes the total is the condition of the slab:
| Slab condition | Added to the system price |
|---|---|
| Sound slab | $0 |
| Minor cracks, pits or spalls | $1–$2 per sq ft |
| Old coating or paint to remove | $2–$6 per sq ft |
| Heavy oil or a soft slab | $1–$2.50 per sq ft |
For a 420 square foot garage, minor cracks add about $420–$840. These are market estimates, not quotes.
Garage Floor Prep and Crack Repair — common questions
Is acid etching enough to prepare a garage floor?
It is a weaker substitute for diamond grinding. Etching leaves a light, uneven profile and cannot remove old paint, which is why grinding is the usual standard for a professional job.
Do hairline cracks mean the garage has a foundation problem?
Usually not. Shrinkage cracks from curing are the commonest kind. A crack that widens or leaves one side higher than the other is worth a look from a concrete or foundation professional.
